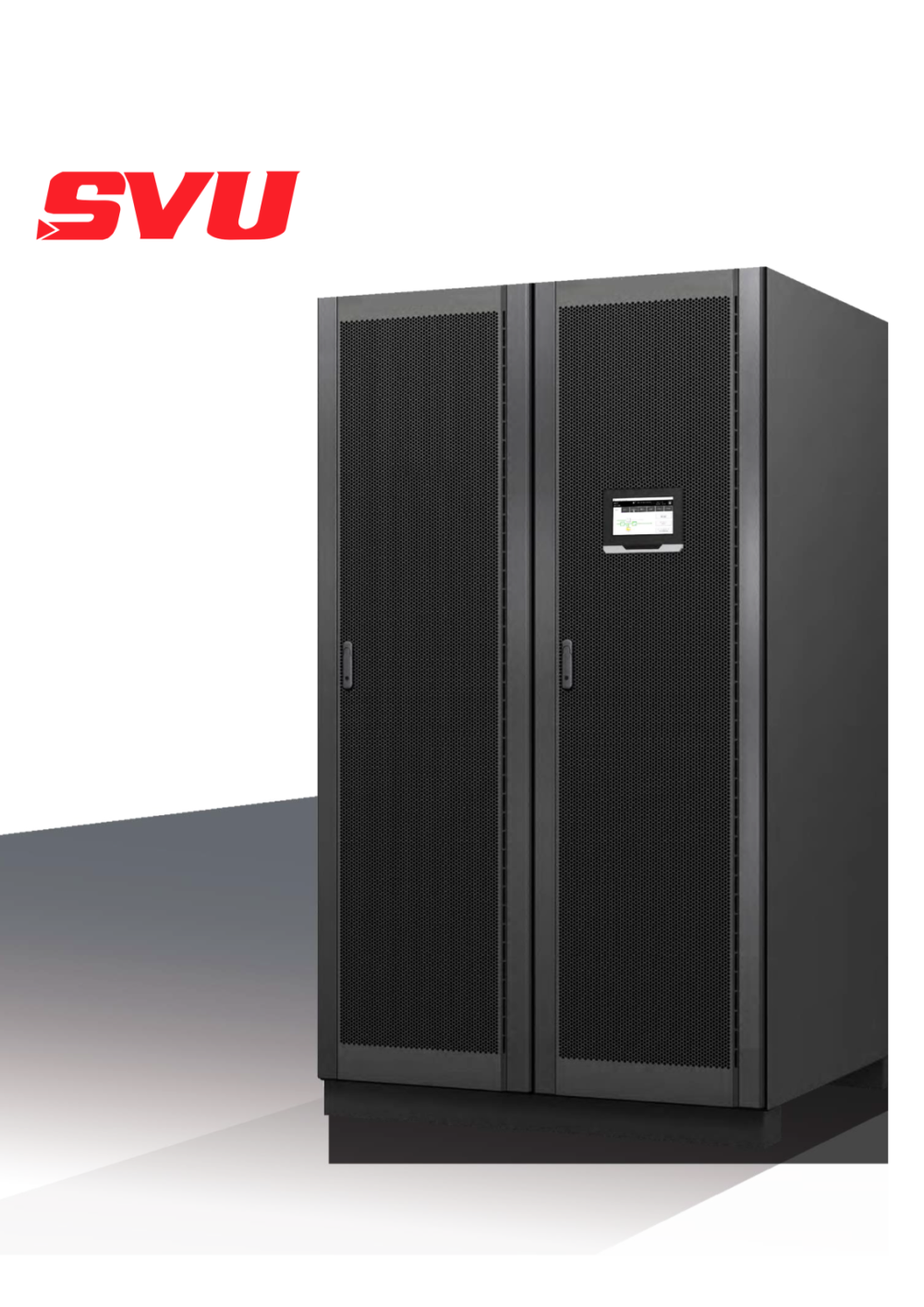

HB PRO 25-1800KVA

The HB Pro is latest three/three modularized, digitally controlled UPS. It is the realization of the latest electronics and automation control technology, a benchmark in the UPS market. The HB Pro brings about a new concept in power supply solution, allowing a breakthrough in the practicability of power usage equipment. HB Pro applies a tray type, smart modular design that allows for hot plug/play designs, this allows flexible adjustment of the modules to satisfy power and reliability requirements. Zero off line maintenance is also realized by its capability to conduct on line maintenance when modules are idle.

- Output power factor 1.0

-  Double conversion on-line technology

- Three-level bridge IGBT PWM control

- 99% efficiency in ECO mode, 97% efficiency in double conversion mode

-  25~600kVA per frame

- Parallel up to 4 frames

- Optimized battery management

- Adjustable battery quantity

-  High flexibility and expandability

- Cableentry

Top and bottom cable entry available

- Communicationsandconnectivity

•Built-indevice andhostUSB

•Five alarm inputs and dedicated EPO

•Alarm relay output

•Four communication slots

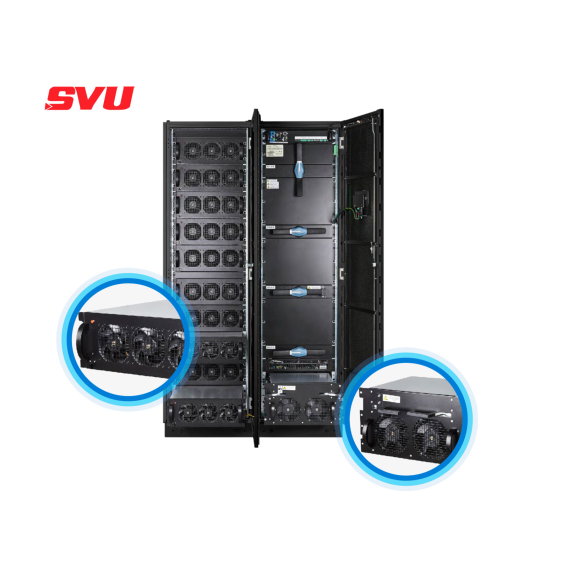

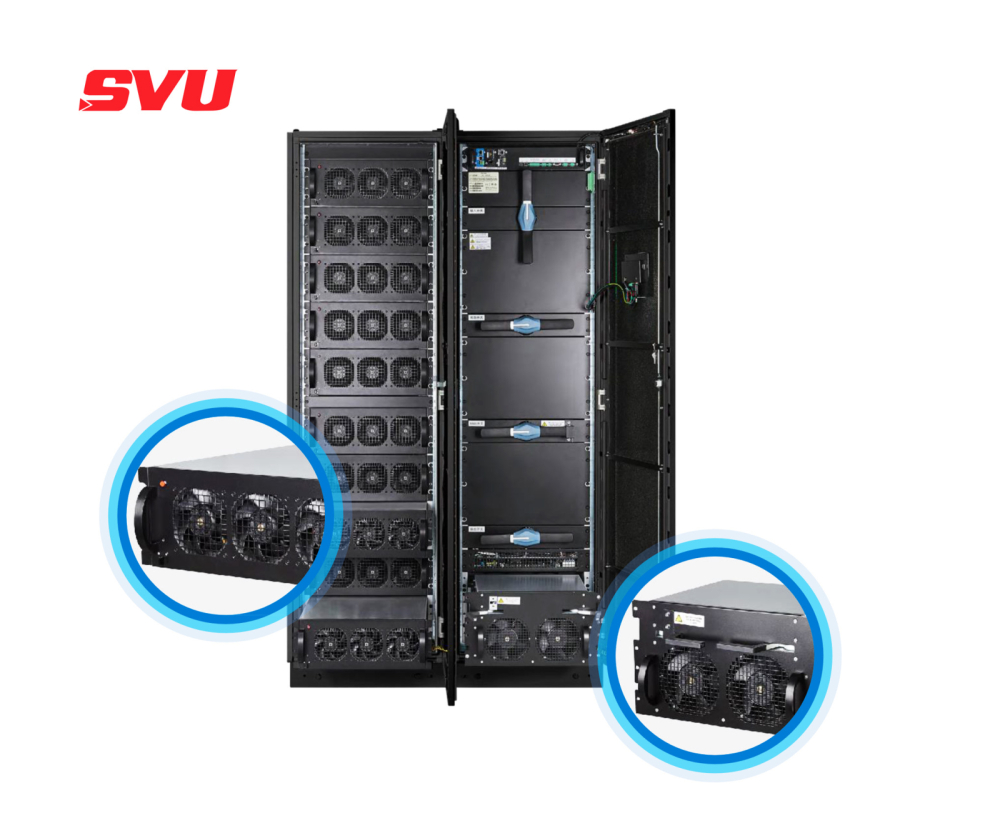

- 25 - 60kW HOTSWAPPABLE powermodules(1~10)

- Replaceable centralized STSW modules

600kW with fast protection bypass fuseand back-feed protection

- DCstartcontrols

Contained within each power module

-  Input/output isolations

Contained Input/Output/Bypass/MBS isolation options

- Redundancy and speed controllable FANs

- 7”Colorful display

- Up to 50% foo tprint saving

- Robust components using oil-filled capacitors & IGBT modules.

- Perfect integration with Lithium battery compatible with multiple Lithium ion BMS

- High efficiency UPM module,efficiency up to 97%
